Thank you for purchasing our Travel Spot Headlamp Adaptors (also packaged as Halfords / AA / RAC, etc.) Please fit as follows:

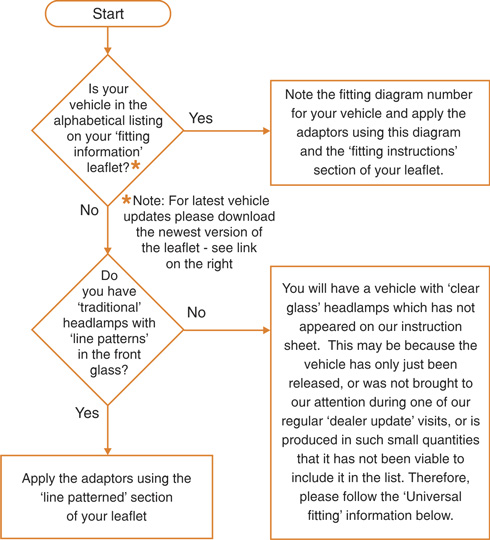

Open the packaging and remove the card + the folded ‘fitting information’ leaflet. Now follow the flow chart below:

Universal Fitting Information

Firstly, you will need to gain access to a ‘Headlamp Alignment’ machine. These can be found at most Vehicle Dealers or Servicing garages and at ALL vehicle testing garages. Position your vehicle in front of the alignment machine with the Headlamps switched onto ‘Dipped Beam’ (i.e. No blue ‘Full Beam’ light illuminated on you dashboard).

The headlamps will throw a light pattern in the machine similar to the one shown in the diagram below (Areas ‘A’ + ‘B’).

It is the ‘raised’ area marked ‘A’ on the diagram which is used to illuminate road signs etc, when driving on the right in your country. However, this area will shine into oncoming driver’s eyes when driving on the left in the UK, and therefore needs to be adapted to prevent dazzle. This can be achieved as follows:

Without removing the backing paper, take hold of the ‘tail’ end of an adaptor and offer the ‘round’ end up to the Headlamp in various positions (see folded leaflet for typical positions – Diagrams 1 - 8 are the most commonly used). The aim is to achieve a reasonable dimming of the ‘dazzle causing Area’ –A, without compromising the overall brightness of the headlamp’s beam ‘hotspot’ (Area ‘B’). By a process of experimentation it will be possible to find the optimum position for the Adaptor.

NOTE: Ideally, the engine should be left running during this process to ensure maximum beam clarity.

Once the fitting position has been identified, the adaptors should be applied using the ‘fitting Instructions’ section of your leaflet.

NOTE: Generally, the Adaptor will fit in the same position (NOT the opposite position) on each of the two Headlamps. For example, if the Adaptor fits in the bottom right corner of the Driver’s side Headlamp, it will also fit in the bottom right corner of the Passenger’s side headlamp.

We trust the above information will allow you to successfully apply your Eurolites, but please email us at help@travelspot.co.uk if you have any further questions.
